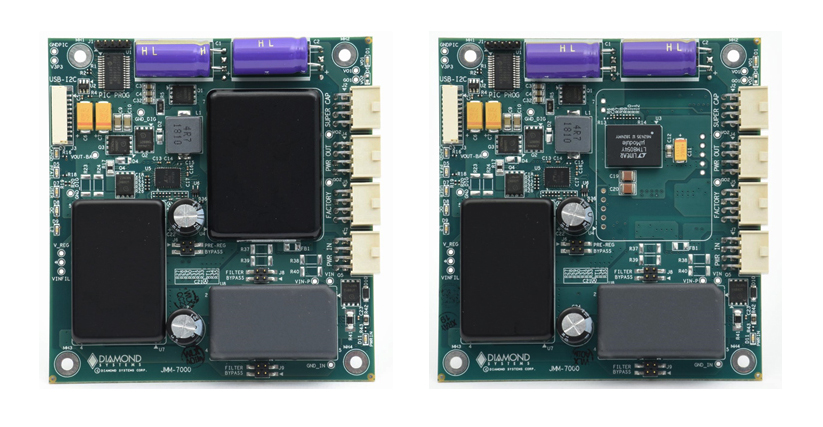

Military grade JMM-7000 power supplies with and without isolation

Rugged DC-DC Power Supplies for Embedded Computing

Aug. 6, 2019

Diamond Systems' JMM-7000 family of dc-dc power supplies feature multiple output options, and transient and brownout protection.

Power Electronics Staff

The JMM-7000 family of dc-dc power supplies is Diamond Systems' most recent series of highly configurable, low-power embedded-computing dc-dc power-supply solutions. The family has a large number of available models and military configurations, including 25- or 40-W power, and isolation/non-isolation options, says the company.

Integrated UPS backup options are available on all military models along with energy packs that have been designed for the JMM-7000 family. Backup energy is provided to maintain stable system operation in case of power interruption.

The new dc-dc power supplies raise the bar on critical power advances, including protection (transient, brownout, and reverse polarity), overall available power options, and configurability.

Mwrf Com Sites Mwrf com Files Jmm7000blockdiagram

Features

Multiple output options:
- 12-V dc output, 40 W with or without 500-V dc isolation
- 5-V dc output, 25 W without isolation / 40 W with 500-V dc isolation
- Dual 5-V + 12-V output option, 40 W with isolation
EMI compatibility to MIL-STD-461C/D/E/F and DO-160C/D/E/F/G requirements
Input immunity per MIL-STD704A/D/E/F, MIL-STD-1275A/B, and DO-160 cat A, B, and Z
Transient protection: 100 V dc/50 ms, 600 V dc/20 μs spikes
Brownout protection: 6 V dc/1 sec
Reverse-polarity protection
Designed to meet MIL-STD-810G shock/vibration specifications (large components epoxied to PCB)
Integrated UPS backup system using high-efficiency supercapacitor energy packs (standard or custom)
Built-in microcontroller provides real-time status of power-supply and backup energy bank
3.55 x 3.775 inches (90 x 96 mm) PC/104 form factor (no bus connectors)
-40 to +85°C operating temperature
ACC-HS104-12.7 heat sink accessory

SEP-7000 Energy Packs

PC/104-sized supercapacitor energy packs have been designed for use with JMM-7000 power supplies (with UPS option) and provide up to 3300 J (watt-sec) of backup energy to maintain stable system operation in case of power interruption. SEP-7000 energy packs are available in two capacities and two configurations (cable connect and plug-on direct mount).

For more information, read or download Diamond Systems' recent white paper, Designing Embedded Computers for Rugged Applications.
