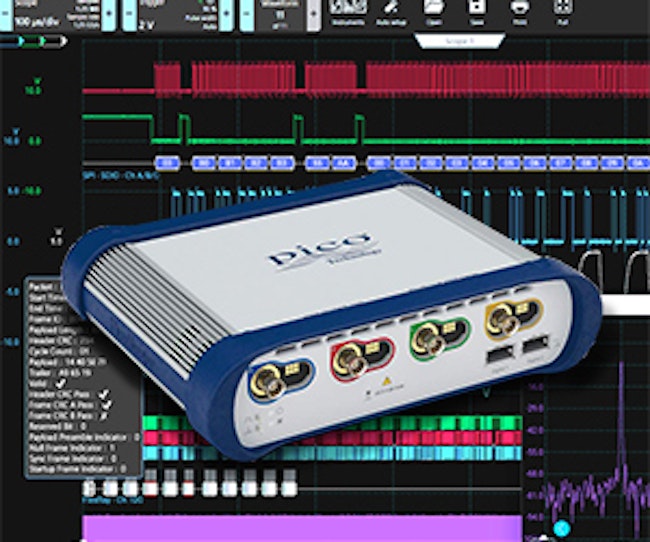

Designed for users needing to capture, measure and analyze sub-nanosecond waveforms with critical precision, the PicoScope 6428E-D features a 3 GHz bandwidth, 100 ps time resolution and 4-gigasamples of buffer memory. This allows it to capture 400ms of data at a maximum sampling rate of 10 GS/s for applications like advanced physics, particle acceleration, LIDAR, VISAR, Spectroscopy, medical imaging, semiconductor testing, etc.

200V RF Reliability Testing is becoming a key parameter of a robust GaN reliability testing strategy. Semiconductor manufacturers aim to utilize the wide bandgap of GaN to maximize performance and efficiency with 200V operation.  Device reliability at 200V under RF drive must be assessed in parallel, as the associated high fields and power dissipation may drive different failure mechanisms than what has been observed at 28V or 48V operation.

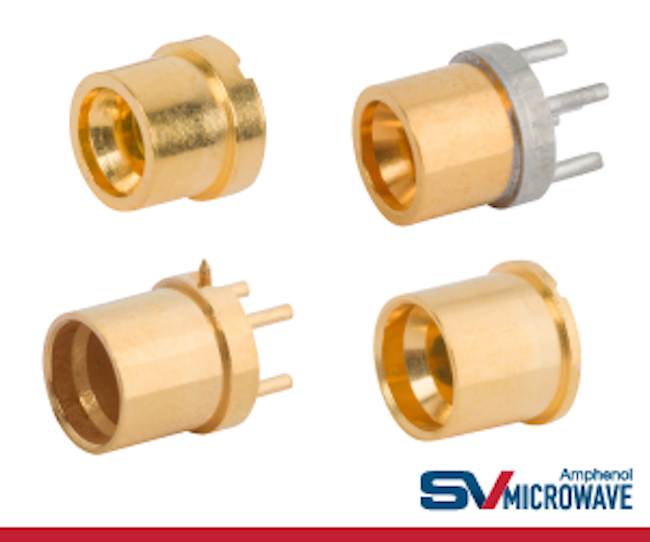

Amphenol SV Microwave’s SMP and SMPM PCB Connectors are ideal for high frequency printed circuit board applications where precision is key. Current configurations include male interfaces in the SMP and SMPM series. Pre-tinning, thru-hole mount, and surface mount options are available. In stock now through distribution!

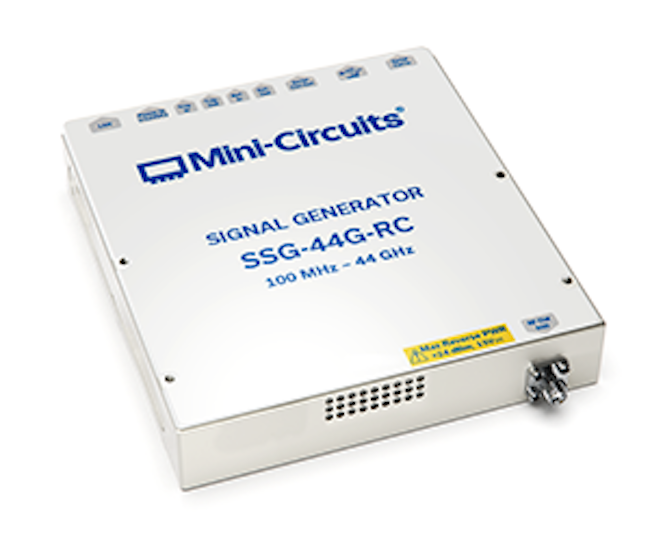

Mini-Circuits’ SSG-44G-RC is a 0.1 to 44 GHz signal source with an RF output range of -40 to +17 dBm. Versatile enough to support automation via USB and Ethernet, the SSG-44G-RC also supports CW and pulsed (≥ 0.5 μs) outputs while sweeping and hopping between power levels and frequencies. High spectral purity ensures that phase noise levels are better than -100 dBc/Hz at 44 GHz and -132 dBc/Hz at 1 GHz at 100 kHz offset.
