Tiny Trimmers Reach To 10 GHz

May 22, 2014

This line of nonmagnetic trimmer capacitors is ideal for application through 10 GHz in MRI circuits and systems.

Related To: Knowles Precision Devices

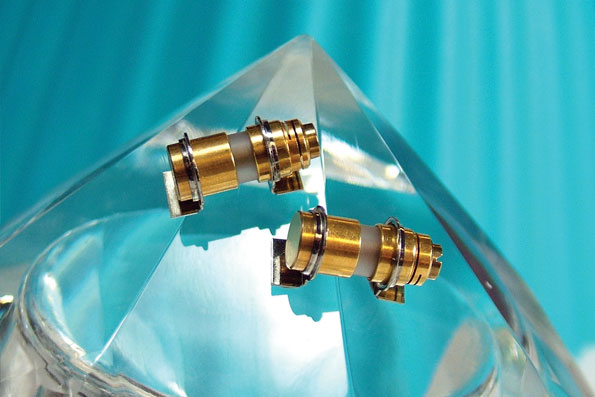

Sapphire trimmer capacitors in the V9000 series are miniature components offering tunable capacitances from 1 to 12 pF in compact housings. In spite of being only 0.64 in. across at the minimum capacitance value, these components are rated for working voltages to 2 kV and can handle voltages as high as 3 kV at frequencies as high as 10 GHz.

Mwrf Com Sites Mwrf com Files Uploads 2014 05 Knowles

The sapphire trimmers maintain stable performance with time and temperature and are mechanically strong and moisture resistant. They feature high quality factor (Q) of 3000 minimum at 100 MHz and they are compatible with SAC 305 reflow solder processing. These nonmagnetic trimmers are well suited for applications in magnetic-resonance-imaging (MRI) circuits and systems according to the firm’s strict traceability and testing regimes.

Knowles Capacitors, Old Stoke Rd., Arminghall, Norwich, Norwalk NR14 8SQ, United Kingdom; +44 (0) 1603 723310, FA: +44 (0) 1603 723301
